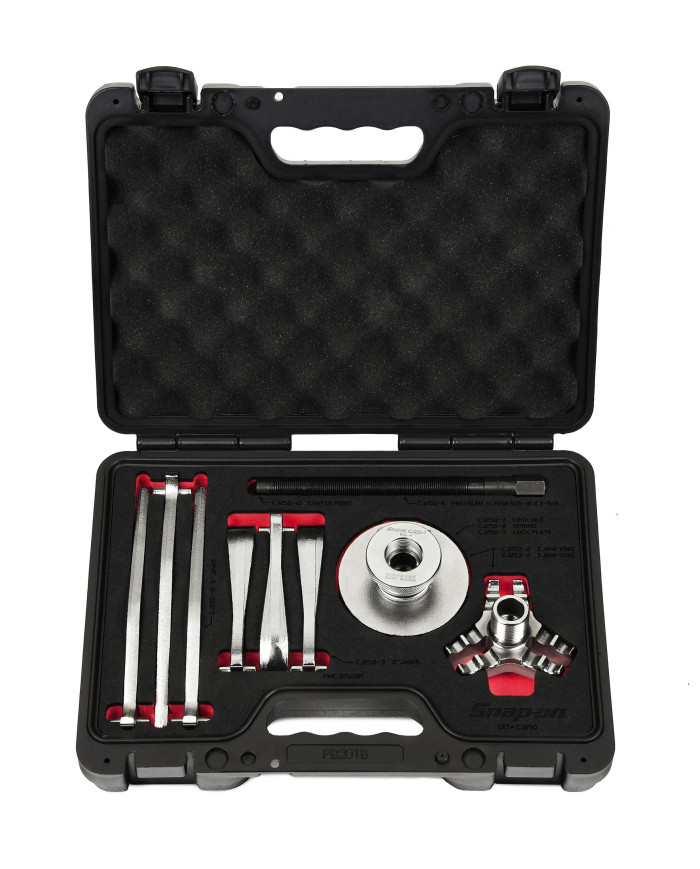

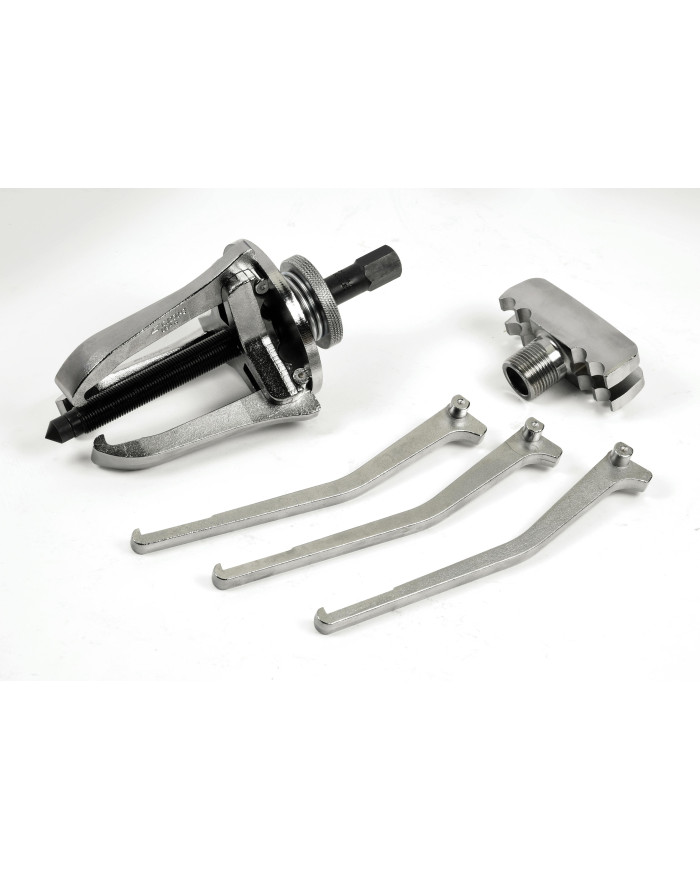

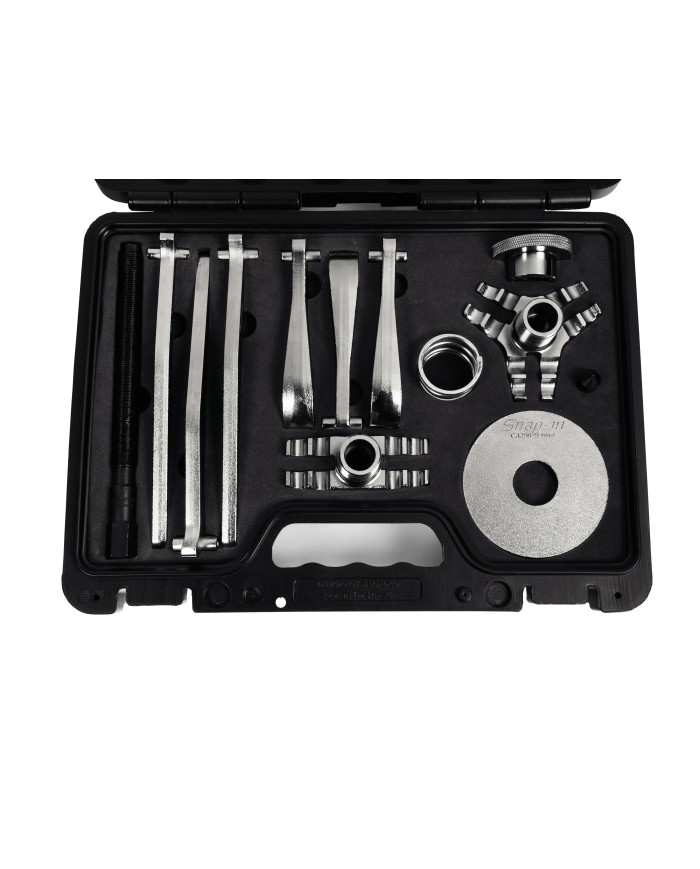

Puller Extractors - Snap-on
Exclusive online price
€443.86
Tax excluded
High-quality puller extractors with reversible jaws, spring-loaded locking mechanism, and durable construction. Suitable for inside and outside applications, offering quick setup and reliable performance.
Delivery in 1-2 working days
-
Free shipping over 500€ -
Fast delivery within 48 hours -
Technical support
Specifications
| Case Dimensions, inches (mm) | 9 x 8-1/2 x 3-1/2 (229 x 216 x 89) |
| Screw Thread Spec | 5/8-18 |
| Screw Overall Length, inches | 6-7/8 |
| Capacity, tons | Up to 7.5 |
| Maximum Spread, inches (mm) outside | 4-1/4 and 8 (108 and 203) |
| Country of Origin | USA |
| Jaw Configuration | 2 and 3 Jaw |
| Maximum Spread, inches (mm) inside | 1-1/2–3-1/2 and 3/4–8 (38–89 and 19–203) |
| Replaceable Point | Yes |
| Jaw Width, inches (mm) | 3/4 (19) |
| Screw Thread Length, inches | 4-7/8 |
| Weight, lb (kg) | 6.3 (2.8) |
| Jaw Thickness, inches | 1/4 (6) |
| Max Reach, inches (mm) | 3 and 6 (76 and 152) |
| Screw Hex Size, inches | 5/8 |
| Jaw Length, inches | 3 and 6 |
Features
• Easy to use: Spring loaded locking mechanism allows the puller jaws to easily lock onto work surface for both “inside” and “outside” pulling applications, preventing the puller from slipping off the application—two-handed operation without the use of tools
• Interchangeability: Reversible jaw design, two-position yokes that accommodate multiple jaw lengths, spring loaded mechanism allows quick changeover without the disassembly of the puller and without the need of nuts and bolts resulting in faster set-ups and fewer man-hours
• Strength and durability: One-piece jaw construction that does not use pins or bolts, provides a stronger, safer jaw; power pressure screws are roll threaded and heat-treated for strength and durability; forged jaws and yokes are heat-treated for maximum strength and durability
