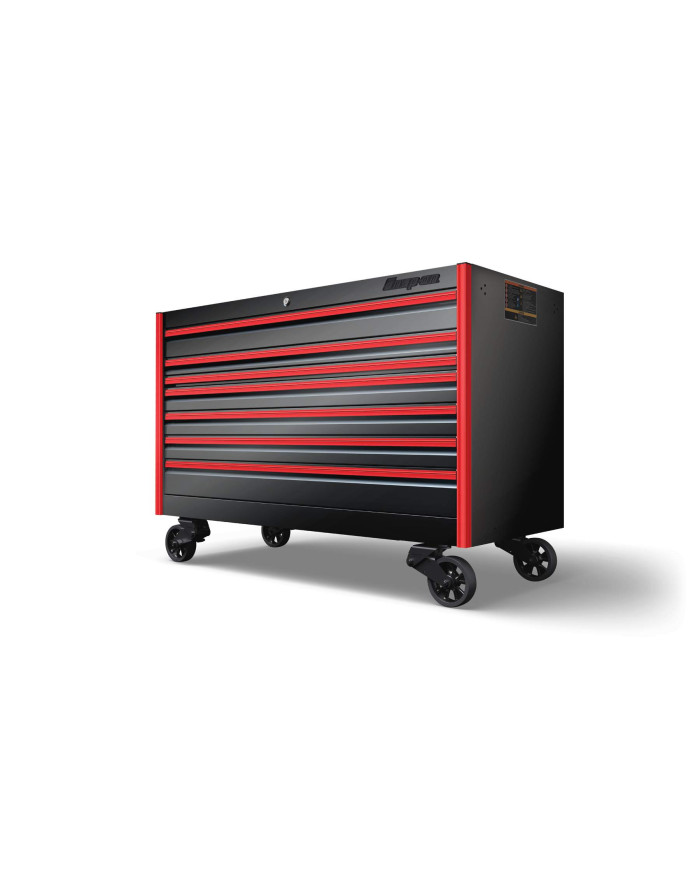

Single Bank EPIQ™ Series Roll Cab

Features

• Uninterrupted storage, 62" wide drawers through the entire unit—access to most used tools, with additional space for longer tools

• EPIQ™ Strength: Designed for a lifetime of use with more load capacity, the roll cab features a combination of our traditional corner gussets and standing seam construction with additional top, bottom and side support to create the strongest Snap-on® roll cab design

• Styling includes flush fronts and trim to reduce snag points and provide a fresh new look

• InPulse™ Drawer Action: Flush finish drawers with uncompromising strength are easier to open, easier to close and do not drift open

• ISO-Ride+™ swivel lock mag wheels with compression puck suspension for a smooth ride over rough surfaces

• Customize with any/all of the EPIQ™ accessories; pair the new 36" end cab to add another bank of drawers, or even a power drawer to add charging capability—available with LED PowerTop™ to illuminate each and every drawer

Specifications

UL Listed No

Depth, inches (mm) 30 (762)

Drawer Banks 1

Widest Drawer, inches (mm) [qty] 62 (1,575) [7]

Width, inches (mm) 68 (1,727)

Work Surface Non-Directional Rubber

Country of Origin USA

No. of Drawers 7

No. of Shelves/Trays —

Height, inches (mm) 46-7/8 (1,191)

Net Weight, lb (kg) 946 (429)

Shipping Weight, lb (kg) 1,006 (456)

Load Capacity, lb (kg) 8,000 (3,629)

Cubic inches (cm³) 45,821 (750,872)

Double Slide (included) Yes (5)

Writing Surface No

Slides, lb (kg) (ball bearing) 227 (103)

Square inches (cm²) 12,082 (77,948)
